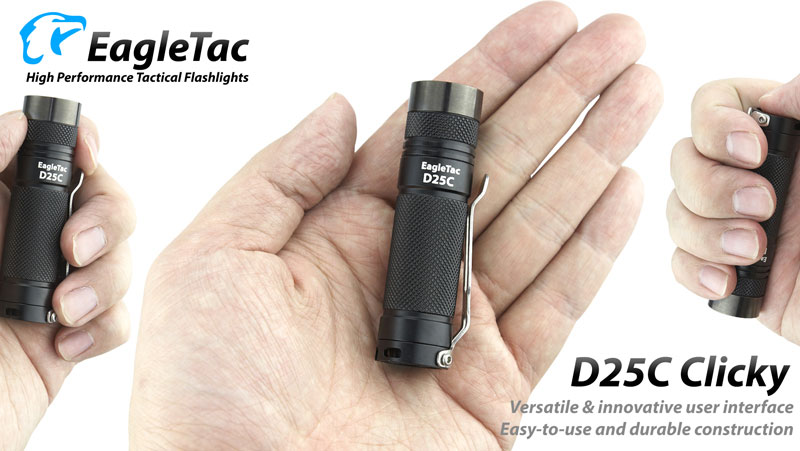

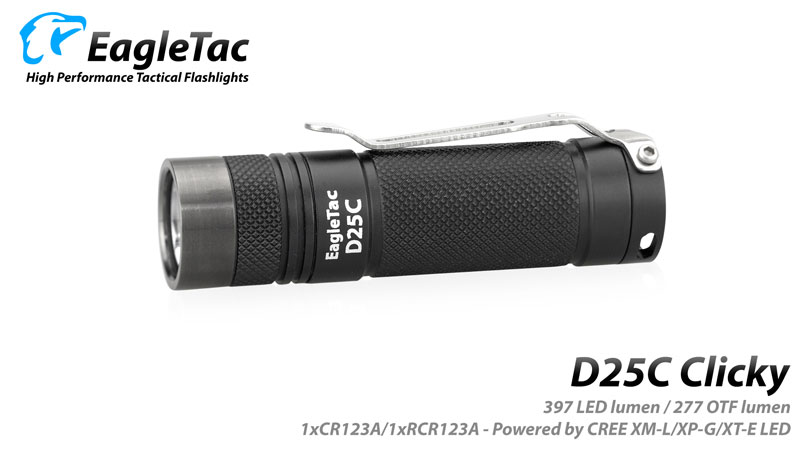

EagleTac D25C Clicky

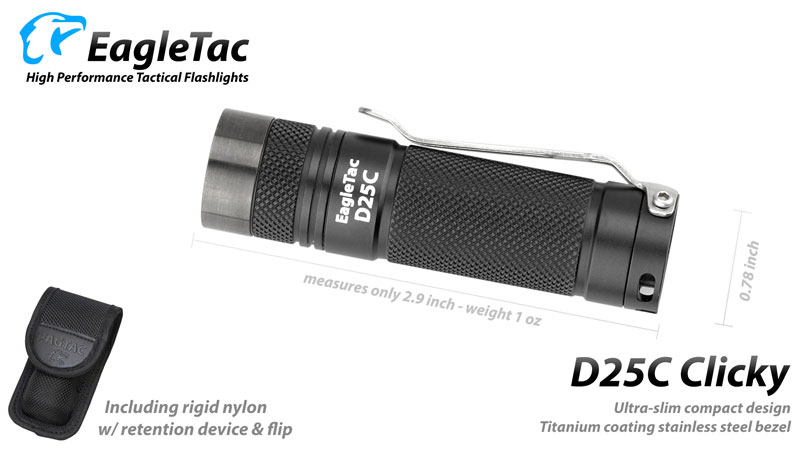

Head Dia.0.78 inches (20 mm)

Body Dia.0.78 inches (20 mm)

Length:2.9 inches (75 mm)

Weight:1 ounce (29 grams)1

• 1xCR123A
• Compatible battery size (each)
• Diameter: 16-16.9mm
• Length: 34-34.9mm

• 0.8V - 3.2V6
• Read here before using 3.7V 16340 / RCR123A li-ion

• Stainless steel bezel w/ durable dark titanium coating
• Spare o-rings
• Polished stainless steel pocket clip
• User Manual
• Rigid Nylon Holster w/ self-retention device and flip
• Mil-Spec Paracord Lanyard w/ quick attachment clip

• Replacement:
• Lens

• Cool White

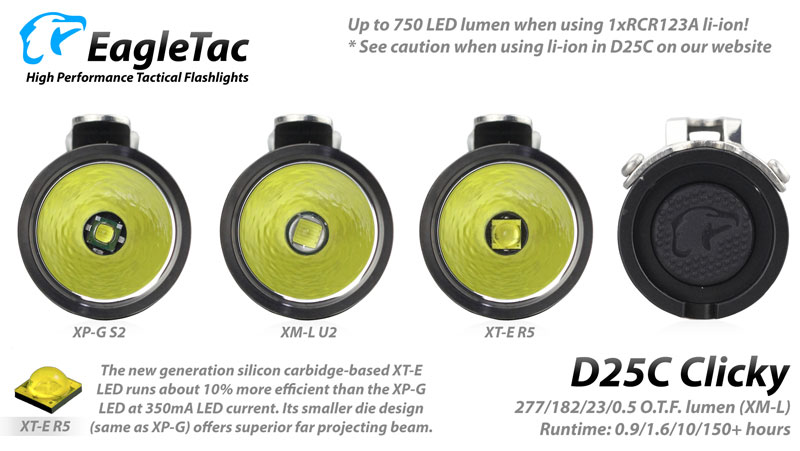

• CREE XM-L2 U2 LED
• CREE XP-G2 S2 LED

• CREE XM-L2 T6 LED
• Nichia 219 CRI-92 LED

• LED lumen: 453
• ANSI FL-14 lumen: 317

• Impact resistance waterwhite glass lens
• Anti-reflective (AR) coating on both side

• A950RC
• Efficiency: up to 90%
• Constant current regulation (non-PWM) for all output modes
• Turbo boost technology5

• Very light textured aluminum reflector

• HAIII hard anodization aerospace aluminum

• IPX-8 standard

• Four brightness levels
• XM-L2 U2
• Led lumen: 4535/296/33/1
• ANSI FL-1 lumen: 3175/210/24/0.5

• XP-G2 S2
• Led lumen: 4085/268/37/1
• ANSI FL-1 lumen: 2725/179/25/0.5

• Nichia 219 D220 (CRI-92)
• Led lumen: 3005/194/26/1
• ANSI FL-1 lumen: 2005/129/16/0.5

• XM-L2 T6 neutral white LED has approximately 7% less output lumen than their cool white counterpart LED.
• With moon-mode setting disabled, lowest output will increase by about 6 times, to 4 lumen, and the second lowest output will double, to around 65 lumen

• Runtime: 0.9/1.6/10/150+ hours

• Strobe/Strobe(Var)/Flash(Hi)/S.O.S.(Fast)/S.O.S./Becaon/Flash(Lo)

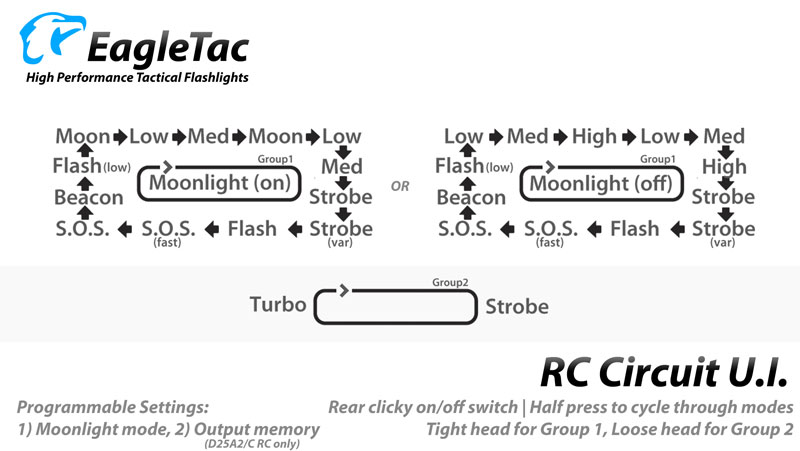

• Basic - Press on the switch button until it clicks to turn on the flashlight. Press the switch again until it clicks to switch off the light.
• Access output groups 1 & 2 - Tight the head to access group 2 output. Loose the head to access group 1 output.
• Switch between output level - With the flashlight on, slightly press the switch and release (within 1s) to switch to the next output.
• Programmable Features - 1) Moonlight output - dim or increase the entire output range of the group 1 output. Toggle this setting starting with head loosen, turn on the light, and then repeat tight and loose for three times. 2) Mode memory (D25C2 Clicky and D25C Clicky only) - remebers the last output in group 1. To toggle this setting, with head tighten, turn on the light, and repeat loose and tight for three times.

• Polished stainless steel pocket clip
• Paracord lanyard with stainless steel split ring
• Rigid nylon holster w/ retention device and flip

• User replaceable glass lens
• Turbo boost technology
• Battery reverse polarity protection
• User removable pocket clip8
• Tail stand

• Ten years performance guaranteed warranty
• Read flashlight regular maintenance
