EagleTac MX25L4C

Dimensions

Battery Type

• 4x18650 or 8xCR123A2
• Compatible battery (diameter/length)
• 123A: (16-16.8mm/34-34.5mm)
• 18650: (18-18.8mm/67-68.5mm)

Read precaution with li-ion batteries.Operating voltage

• 10V - 24V

What's included

• MX25L4C flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• 4xCR123A Battery Magazines

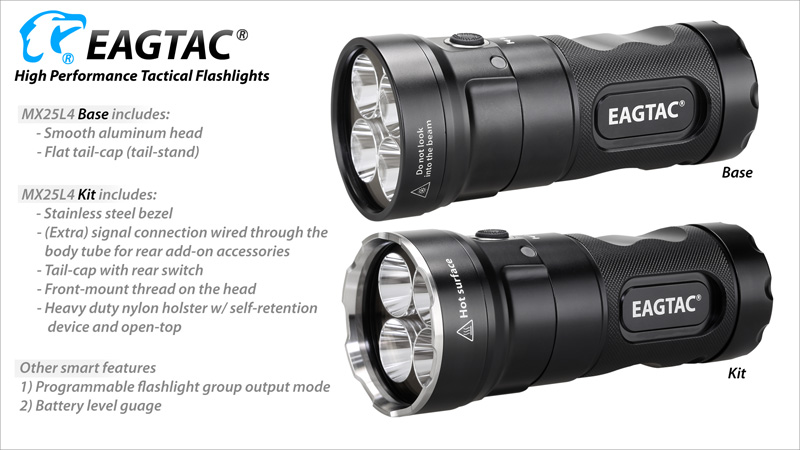

All models

• Base model
• Includes everything listed in "what's included" section above.
• Comes with smooth aluminum bezel.
• Flat tail-cap (tail-stand)

Kit

• Includes everything listed in "what's included" section above, plus:
• (Extra) signal connection through the body tube for rear accessories add-on
• Tailcap w/ switch and tail-standing ability
• Flashlight head come with front-mount thread for bezel and filter attachment
• Stainless steel bezel
• Heavy Duty Nylon Holster w/ self-retention device and open-top design

Carrying method

• Para-cord lanyard with quick attachment clip

Waterproof

• IPX-8 standard

Replaceable items

• Lens

LED

• 4 * CREE XM-L2 Cool White U2 LED
• 4 * CREE XM-L2 Neutral White T6 LED

Max output

• CREE XM-L2 U2 LED
• LED lumen: 4800
• ANSI FL-14 lumen: 4020

• CREE XM-L2 T6 LED
• LED lumen: 4465
• ANSI FL-14 lumen: 3740

Lens

• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

LED circuit

• C7000 HV
• Wide voltage input range
• 48-Watt output
• Low internal resistance design offers up to 93% efficiency7
• Non-dimming constant current regulation for all output levels
• Negligible uA standby current
• Energy saving feature5
• High voltage mode to reduce output above 18V input
• Dual color LED voltage report system

Reflector

• Smooth aluminum reflector

Material

• HAIII hard anodization aerospace aluminum

Controls

Output and Runtime

• Four brightness levels (Regular mode)
• Led lumen: 48005/2180/410/18
• ANSI FL-1 lumen: 40205/1830/345/15
• Runtime:

Seven o brightness levels + Strobe (Tactical mode)

• Led lumen: 48005/1000/Strobe I/II
• ANSI FL-1 lumen:
  40205/835/Strobe I/II
• Runtime:

Neutral white T6 LED offers about 7% less lumen output than the U2 LED.Seven hidden auxiliary outputs

• Strobe/Strobe(Var)/Flash(Hi)/S.O.S.(Fast)/S.O.S./Beacon/Flash(Lo)

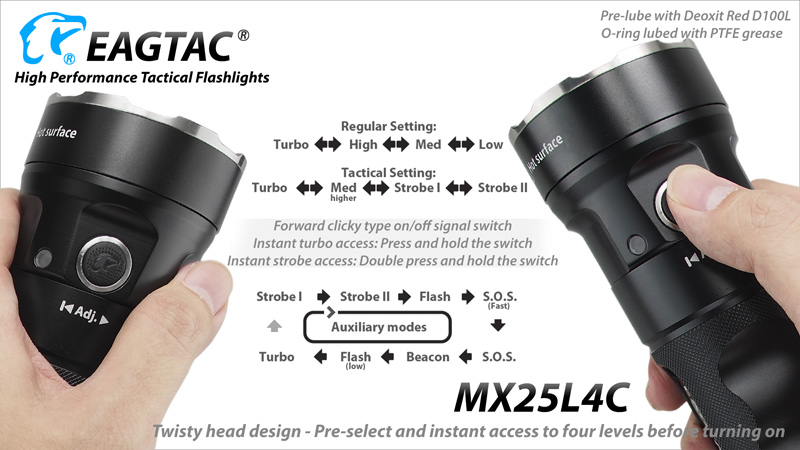

Operations

• Turn on the light by press and release the on/off button switch (<0.4s). To turn off the light, press and release the switch again.
• For momentary on, press and hold the button switch for immediate output.
• Twist the head to select between four output levels. You can pre-select the desired output level before turning on the flashlight.
• Instant Turbo output - at any output level, press and hold the flashlight for 100% output. Release the button to return to previous level.
• Instant Strobe output - at any output level (or off), double press and hold the on/off button switch for strobe output. Release the button to return to previous level (or off).
• To access auxiliary levels, starting at head tight position (1st level), loosen to 3rd (or 4th level) and tighten the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loosen the head to quit.
• Advance (Programmable Features) To switch between tactical and regular mode, turn on the flashlight at 1st level, dial to 2nd level and then back to 1st level for five times within five seconds.

• High voltage mode - For optimal circuitry temperature operating at higher voltage, when initial startup voltage exceeds 18V, the maximum output will be reduced by 15%.
• LED voltage indicator
• 4 x 18650 mode
• 8 x CR123A mode

Other features

• LED direct soldering on copper for maximum heatsink ability
• User replaceable glass lens
• Battery reverse polarity protection
• Tail stand
• Battery reverse polarity protection
• Ultra low internal resistance phosphor bronze springs (silver coated)
• Tail-cap w/ switch (Kit)

Warranty

• Ten years performance guaranteed warranty
• Read flashlight regular maintenance
