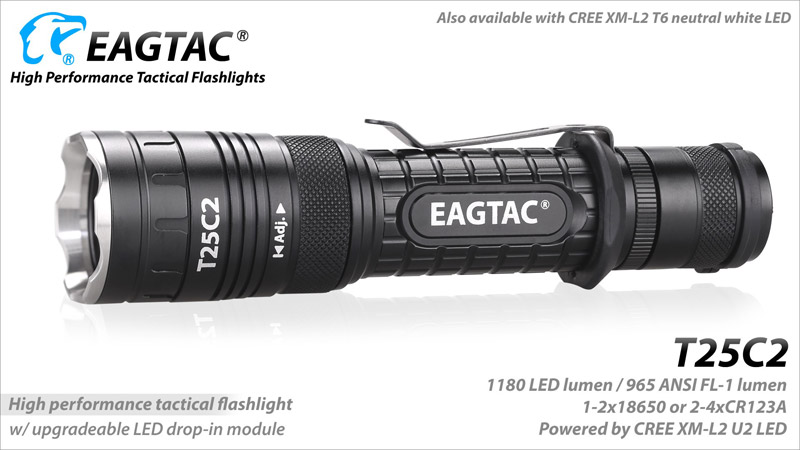

EagleTac T25C2

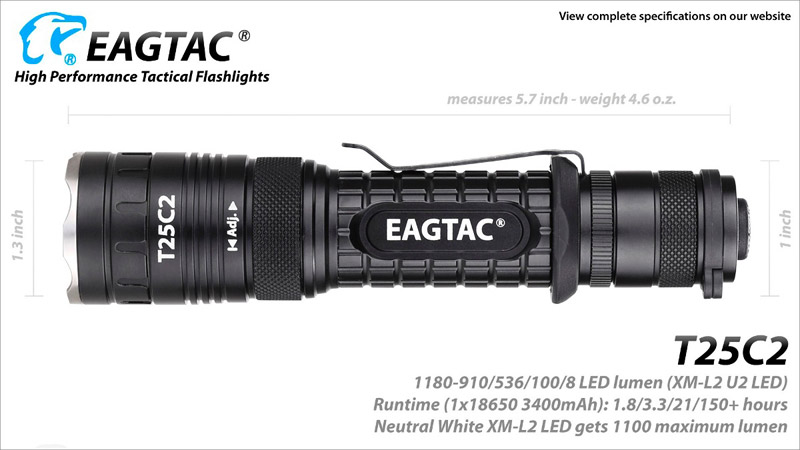

Dimensions

Battery Type

• 2xCR123A, 2xRCR123A, or 1x18650 li-ion2
• 3xCR123A, or 3xRCR123A li-ion3
• 4xCR123A, or 2x18650 li-ion4
• Compatible battery diameter/length
• 123A: (16-16.8mm/34-34.5mm)
• 18650: (18-18.8mm/67-68.5mm)

Read battery safety precautionOperating voltage

• 2.7V - 12V

Body color

• Black (HAIII)

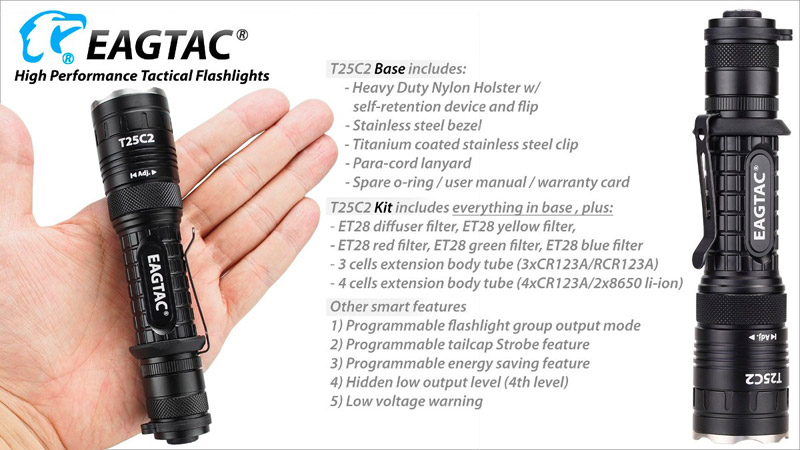

What's included

• Stainless steel bezel (removable)
• Spare O-rings
• Titanium coated Stainless steel pocket clip
• User manual
• Tail-stand rubber boot
• Soft cigar holding grip
• Cigar grip cover ring
• Lanyard ring attachment ring
• Heavy Duty Nylon Holster w/ self-retention device and flip
• Mil-Spec Paracord Lanyard w/ quick attachment clip

All models

• Base model
• Includes everything listed in "what's included" section above.

• Filter & Extended Tube Kit
• Includes everything in base model, plus:
• ET28 diffuser filter, ET28 yellow filter, ET28 red filter, ET28 green filter, ET28 blue filter
• 3 cells extension body tube for three CR123A/RCR123A
• 4 cells extension body tube for four CR123A or two 18650 li-ion

Weapon Kit

• Includes everything in base model, plus:
• Remote Pressure switch w/ separate forward clicky on/off switch
• Choose pressure switch wiring from:
• Aluminum Weapon Rail Mount for 1" Body
• Velcro double sided tape

LED drop-in modules regular beam

• UV 365nm dropin (Ledengin LZ1-00UV00, 1360mW radiant flux, 2levels)
• UV 395nm dropin (Ledengin LZ1-00UA00, 1400mW radiant flux, 2levels)
• IR 850nm dropin (Osram 640mW radiant flux, 2levels)
• IR 940nm dropin (Osram 600mW radiant flux, 2levels)
• Red color LED dropin (CREE XP-E Color, 2levels)
• Green color LED dropin (CREE XP-E Color, 2levels)
• Blue color LED dropin (CREE XP-E Color, 2levels)

LED drop-in modules floody beam

• Multi-color (White/Red/Royal Blue/Green) dropin (CREE XM-L Color, D25LC2 color driver)
• Triple high CRI (92) neutral white LED dropin (3*Nichia 219 LED, T25C2 driver)
• Triple cool white LED dropin (3*CREE XP-G2 S2 219 LED, T25C2 driver)
• Triple Red Color LED dropin (3*CREE XP-E Color LED, T25C2 driver)
• Triple Green Color LED dropin (3*CREE XP-E Color LED, T25C2 driver)
• Triple Blue Color LED dropin (3*CREE XP-E Color LED, T25C2 driver)

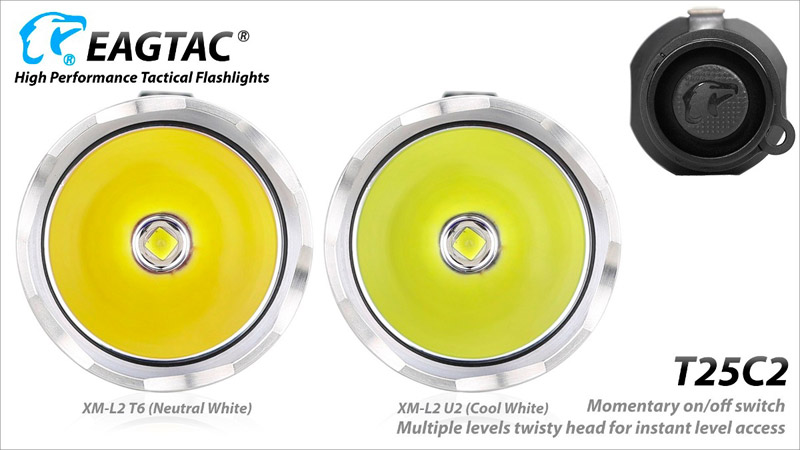

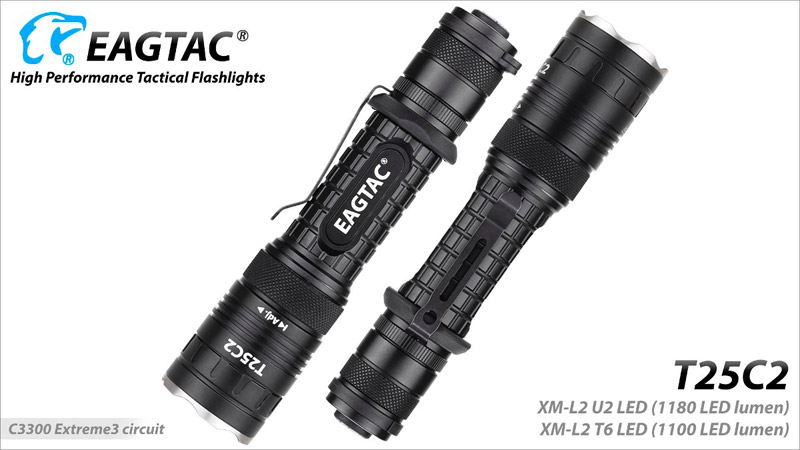

LED

• CREE XM-L2 U2 LED (Cool White)
• CREE XM-L2 T6 LED (Neutral White)
• CREE XP-L V5 LED (Cool White)

Max output

• CREE XM-L2 U2:
• LED lumen: 1180
• ANSI FL-16 lumen: 965

Lens

• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

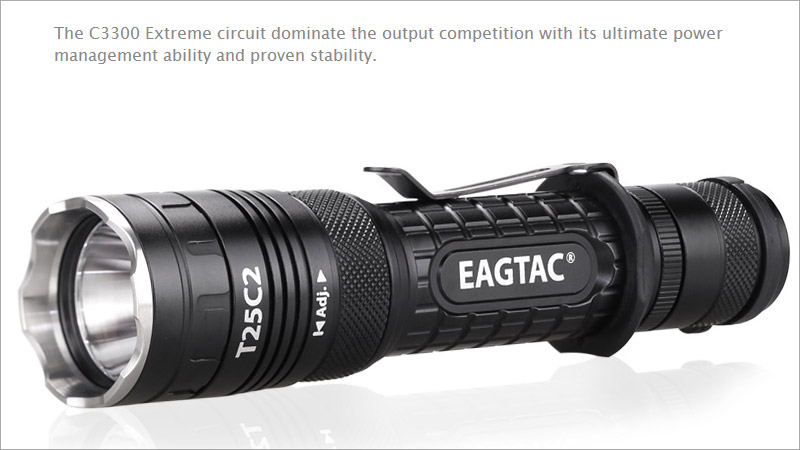

Circuit

• C3300 Extreme3
• Synchronous buck w/ efficiency of up to 95%
• Non-dimming constant current regulation for all output levels without flicking
• Low dropout voltage, enable circuit to current regulate even with a single 18650 for most of the runtime at turbo output.
• Low battery voltage warning12
• Turbo boost technology

Reflector

• Smooth aluminum reflector

Material

• HAIII hard anodization aerospace aluminum

Waterproof

• IPX-8 standard

Carrying method

• Titanium coated stainless steel pocket clip
• paracord lanyard with detachable lanyard holder
• Rigid nylon holster w/ self retention device and flip

Other features

• Upgradable LED and driver drop-in module
• User replaceable glass lens
• Tactical rubber cigar grip (replaceable with grip cover)

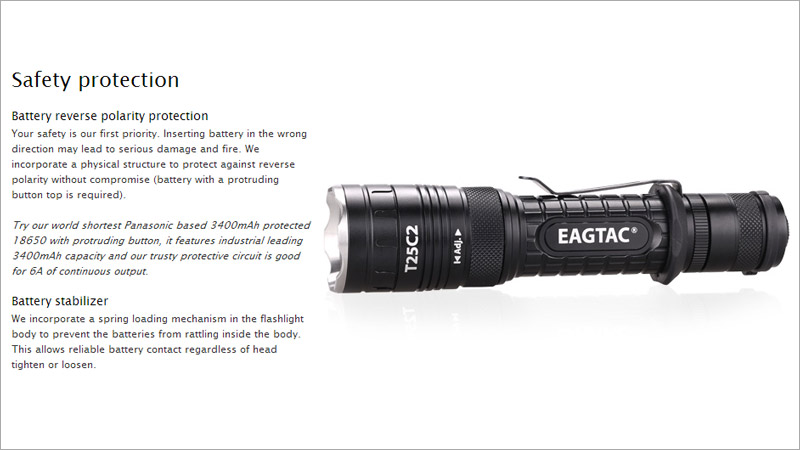

• Battery reverse polarity protection
• User removable pocket clip
• Tail stand ability with included tail stand boot

Replaceable items

• LED drop-in module
• Lens
• Switch module

Output and Runtime

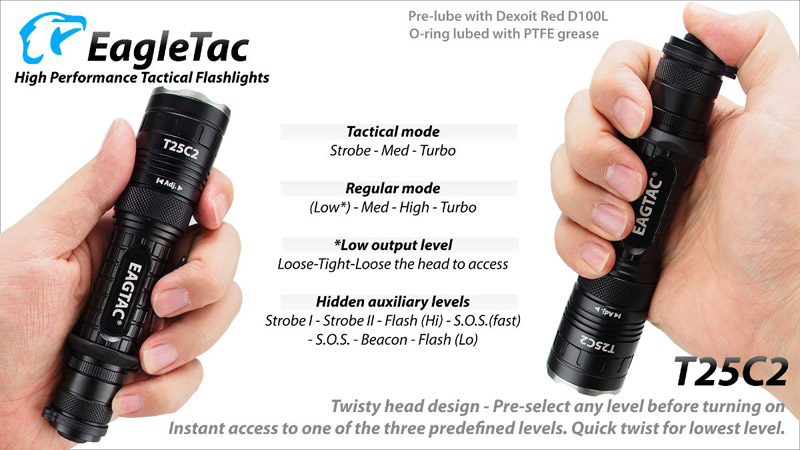

• Regular mode (3+1 brightness levels)
• Led lumen: 118010-910/536/100/8
• ANSI FL-1 lumen: 96511-746/440/85/7
• Runtime:

Tactical mode (Two brightness levels + strobe)

• Led lumen: 118010/342/Strobe I
• ANSI FL-1 lumen: 96510/282
• Runtime:

Seven hidden auxiliary outputs

• Strobe/Disoriented strobe/Flash(Hi)/S.O.S.(Fast)/S.O.S./Beacon/Flash(Lo)9

See other battery type runtime here.Operations

• Tactical forward clicky switch
• Basic
• Turn on the light by pressing the tailcap button until it clicks.
• Twist the head to select between three output levels.
• To access the lowest 4th level, turn the head to 3rd level, then 2nd level, and then back to 3rd level within one second.
• You can pre-selected output level before turning on the light.

Advanced

• Cycle through auxiliary modes: tight the head (1st level), and loose the head (3rd level) and then tight the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loose the head to quit.

• Switching between regular mode and tactical mode (default): Switch to 2nd output level and turn the flashlight on and off for 20 times.
• Tail strobe feature (off by default): With this enabled, you can access strobe output at the tailcap switch button . To enable (or disable) this function (disable from factory), switch to 1st level and turn the flashlight on and off 20 times (one second or less between each click). With the tailcap strobe setting enabled, a double press of the switch button (within one second) will activate the strobe output.
• Energy saving feature (on by default): T25C2 reduces output by 24% after 200 seconds at turbo mode. With this feature turned off, T25C2 reduces output by 8% instead. To toggle this feature, twist the head to 3rd level and turn the flashlight on and off for 20 times. Once setting has been changed, LED will output 3 seconds at 100% (enable), or 1 second at 100% (disable).

ControlsWarranty & Maintenance

• Ten years performance guaranteed warranty
• Proper maintenance goes a long way to ensure your light to serve in the toughest environment and years to come.
• Read below to how to keep your T25C2 in top shape.
