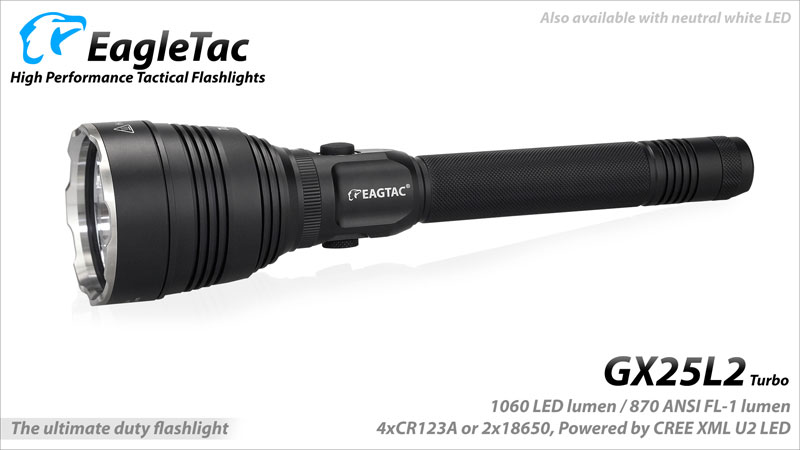

EagleTac GX25L2 Turbo

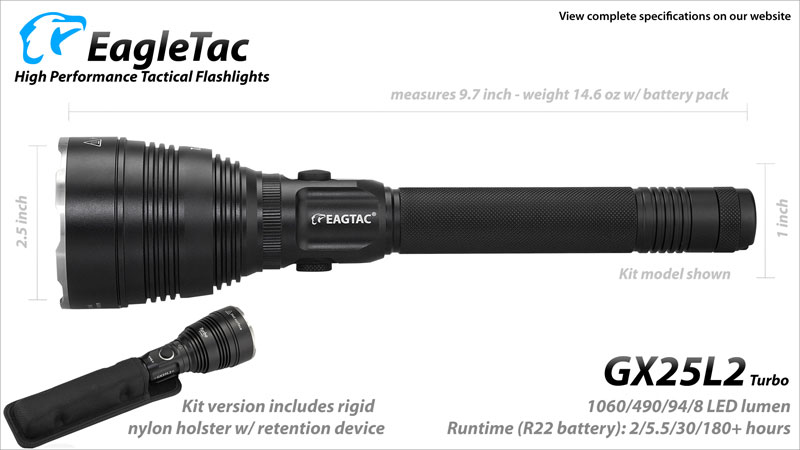

Dimensions

Battery Type

• 2x18650 li-ion
• 4xCR123A (for backup use)
• Compatible battery size (each)
• 18650: (18-18.8mm/65-68.5mm)
• 123A: (16-16.8mm/34-34.5mm)

Only use the built-in charger to charge EAGTAC original 7.4V battery pack (more)Read battery safety precautionOperating voltage

• 2.7V - 12V6
• Read more about operating with individual or non-rechargeable batteries

What's included

• GX25L2 Turbo flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• Rechargeable models comes with 7.4V battery pack and spare waterproof charging cap

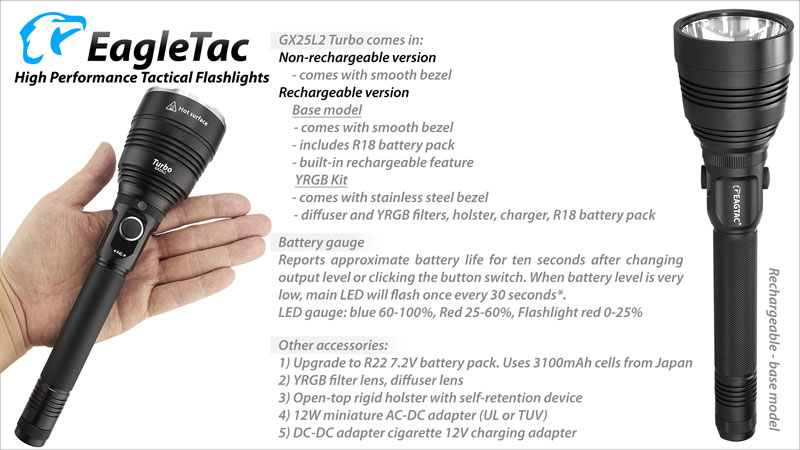

All models

• Non-rechargeable:
• Base model

Rechargeable:

• Base model
• YRGB Kit

* For base rechargeable model, you need to purchase seperate EAGTAC 12W AC-DC adapter (standard 5.5mm/2.1mm positive center pin), or 12V car DC adapter to charge the flashlight.

Battery Pack

• IC protected, prevents over-charge, over-discharge, short circuit
• 7.4V li-ion battery pack (R18)
• 2500mAh capacity, 18.5Wh

7.4V li-ion battery pack (R22) - Optional

• 3100mAh capacity, 22.9Wh
• Authentic Japanese cells

Accessories / Spare parts

• 7.4V li-ion battery packs (R18/R22)
• Miniature AC-DC adapter
• 100V-240V to 12V@1A, 12Watts
• US version - UL certified, PSE certified
• European version - TUV/CE certified

12V Automobile DC adapterRegular (GX25L2) reflector head w/ protective end capAluminum filter housing w/ flip-over headYGRB filter and diffuser lensRigid nylon holster w/ self-retention deviceLens

LED

• Cool White
• CREE XM-L2 U2 LED

Neutral White

• CREE XM-L2 T6 LED

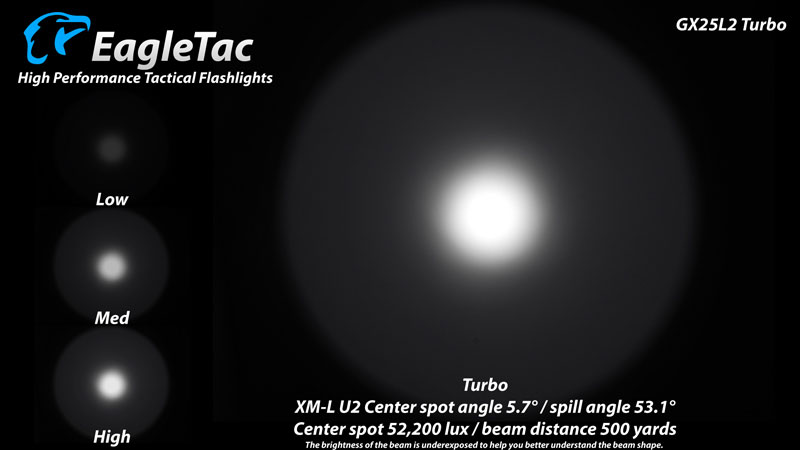

Max output

• LED lumen: 1220
• ANSI FL-14 lumen: 1002

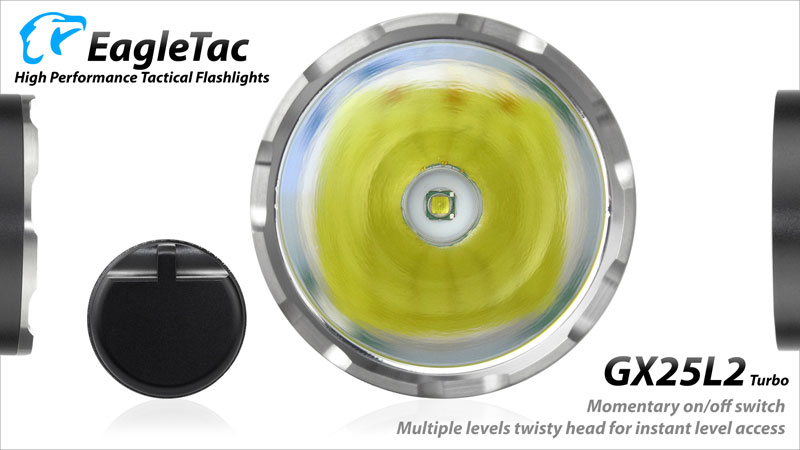

Lens

• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

LED circuit

• C3500 SEL
• Synchronous buck w/ efficiency of up to 95%
• Non-dimming constant current regulation for all output levels
• Very low standby current (uA)
• Turbo boost technology5

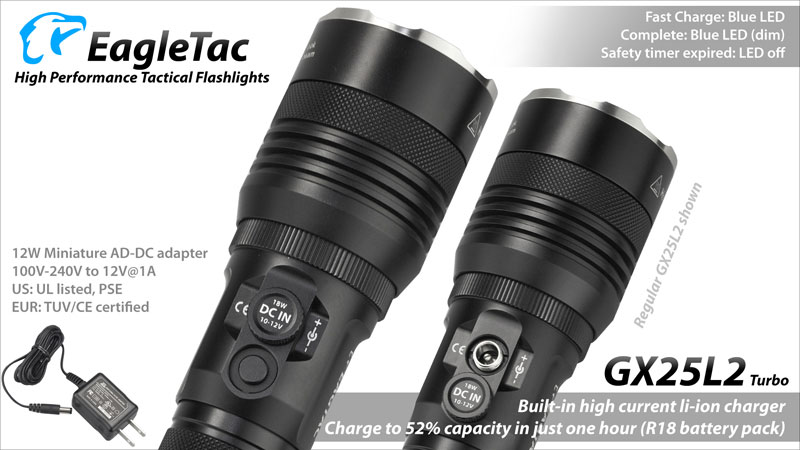

Charging circuit

• 1300SW
• Highly efficient buck switch
• Accepts input from 10V to 12V
• Compatible with 12V automobile DC socket
• Constant current and constant voltage charging method
• Fast charge to 52%/42% in one hour (R18/R22)
• Three hours safety timer w/ charging indicator (more)

Reflector

• Smooth aluminum reflector

Material

• HAIII hard anodization aerospace aluminum

Waterproof

• IPX-8 standard

Output and Runtime

• Four brightness levels (Regular mode)
• Led lumen: 12205-1071/557/106/8
• ANSI FL-1 lumen: 10025-878/456/87/7
• Runtime: 1.7/4.5/25/150+ hours (R18)
• Runtime: 2/5.5/30/180+ hours (R22)

Two brightness levels (Tactical mode)

• Led lumen: 12205-1071/176/Strobe I/Strobe II
• ANSI FL-1 lumen: 10025-878/144/Strobe I/Strobe II
• Runtime: 1.7/15 hours (R18)
• Runtime: 2/18 hours (R22)

XM-L2 T6 neutral white LED has approximately 7% less output lumen compared to U2 LED.Seven hidden auxiliary outputs7

• Strobe/Strobe(Var)/Flash(Hi)/S.O.S.(Fast)/S.O.S./Becaon/Flash(Lo)

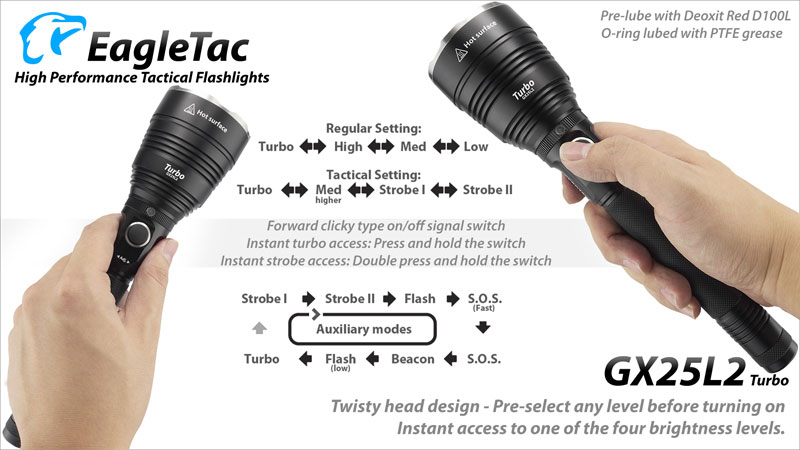

Operations

• Basic - Turn on the light by press and release the on/off button switch (<0.4s). To turn off the light, press and release the switch again.
• For momentary on, press and hold the button switch for immediate output.
• Twist the head to select between four output levels. You can pre-select the desired output level before turning on the flashlight.
• Instant Turbo output - at any output level, press and hold the flashlight for 100% output. Release the button to return to previous level.
• Instant Strobe output - at any output level (or off), double press and hold the on/off button switch for strobe output. Release the button to return to previous level (or off).
• To access auxiliary levels, starting at head tight position (1st level), loosen to 3rd (or 4th level) and tighten the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loosen the head to quit.
• Advance (Programmable Features) To switch between tactical and regular mode, turn on the flashlight at 1st level, dial to 2nd level and then back to 1st level for five times within five seconds.

Controls

(Non-turbo models shown)

Carrying method

• Para-cord lanyard
• Rigid nylon holster w/ retention device

Other features

• User replaceable glass lens
• Power gauge
• Turbo boost technology
• Battery reverse polarity protection
• Tail stand
• Upgradeable turbo-size head and reflector

Warranty

• Ten years performance guaranteed warranty
• Read flashlight regular maintenance
